Languages Settings

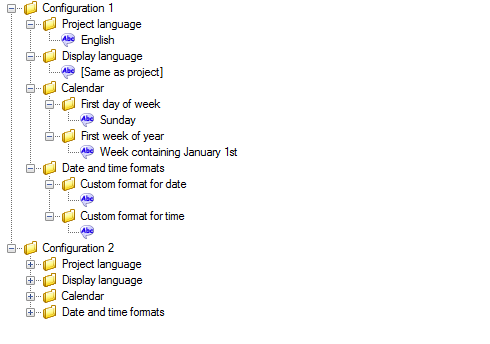

The Languages Settings dialog manages the two language configurations. Each configuration includes language plus other culture related properties and are known as Configuration 1 and Configuration 2. ClosedShow picture

The following settings are available for each of the two configurations.

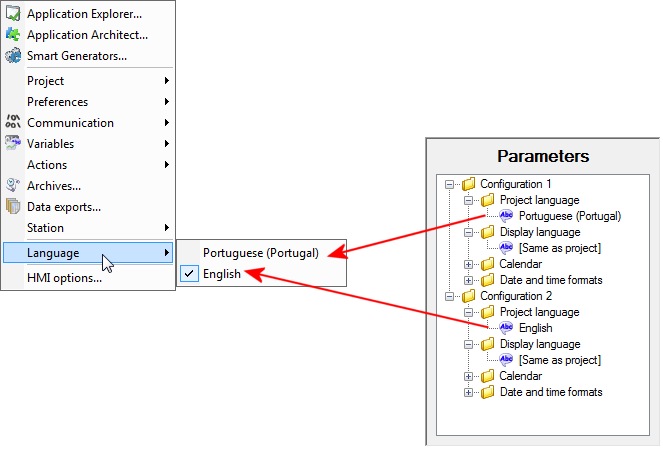

  • Project language - The language that you assign to the project. The Project Language is just a label having no operational effect other than it is displayed when selecting a language using the Language animation or the configuration menu. ClosedShow picture
  • Display language - The language used for PcVue configuration menu and dialogs. Selected from one of the languages listed in the topic Language Overview, or [Same as project]. If you choose [Same as project], the software will attempt to select the language, from those that are supported, that is closest to the project language. For example, if the Project Language were French (Belgium) it would select French as the Display Language. If it is unable to determine a language, it will default to English.
  • Calendar
    • First day of the week - The day that is considered the first of the week. Used by Data Export.
    • First week of the year - The method used to determine the first week of the year. Used by Data Export. The following options are available.
      • Week containing January 1st.
      • First full week.
      • First week with four or more days.
  • Date and time formats
    • Custom format for date - A custom format for display of the date. Used by Data Export. You can select one of the pre-configured formats or enter your own. The following format characters are recognized.
      M - The month from 1 to 12.
      MM- The month from 01 to 12.
      MMM - Month as a three character abbreviated name.
      d - The day of the month from 1 to 31.
      dd - The day of the month from 01 to 31.
      yy - The year from 00 to 99.
      yyyy - The year as four digits.
      Any other characters are interpreted literally. The default format is fixed to MM/DD/YYYY HH24:MM:SS.
    • Custom format for time - A custom format for display of the time. Used by Data Export. You can select one of the pre-configured formats or enter your own. The following format characters are recognized.
      h - The hour using a 12-hour clock from 1 to 12.
      hh - The hour using a 12-hour clock from 01 to 12.
      H - The hour using a 24-hour clock from 0 to 23.
      HH - The hour using a 24-hour clock from 00 to 23.
      mm - The minute from 00 to 59.
      fff - The millisecond from 0 to 999.
      tt - The AM/PM designator.
      Any other characters are interpreted literally.
