Roles View

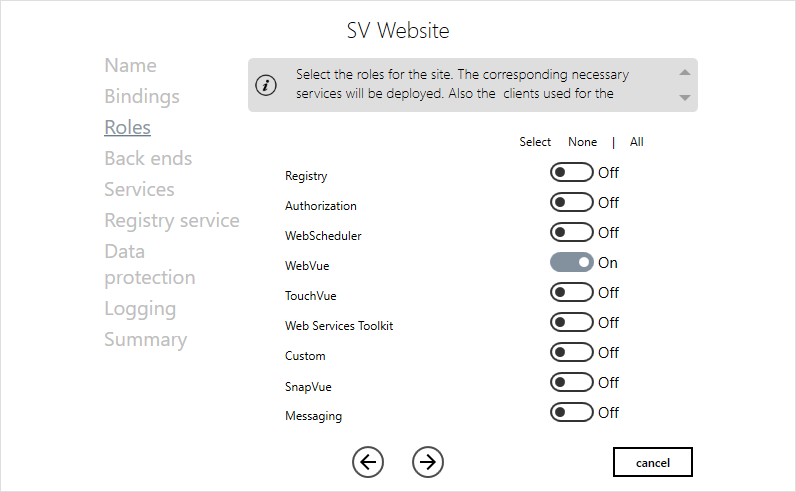

The Roles View is displayed by both the Quick Setup and Custom Setup wizards and can also be opened by clicking the Roles and Services button in a site's tile. The choice of roles also determines which services are provided. ClosedShow picture

Roles settings

  • Registry - Select to deploy the registry service.
  • Authorization - Select to deploy the authentication service of PcVue (OAuth).
  • WebScheduler - Select to deploy the WebScheduler server role. The WebScheduler is used to manage the built-in schedules of PcVue and those of BACnet devices.
  • WebVue - Select to deploy the WebVue server role. WebVue is used to view PcVue mimics in a web browser.
  • TouchVue - Select to deploy the TouchVue server role. TouchVue is a mobile app used to monitor PcVue variable values.
  • Web Services Toolkit - Select to deploy the Web Services Toolkit server role. The Web Services Toolkit is a web API that can be used to develop custom apps.
  • Custom - Select if deploying a custom app and wish to deploy a customized list of services.
  • SnapVue - Select to deploy the SnapVue server role.
  • Messaging - Select to deploy the instant messaging role.
