Mimic Options

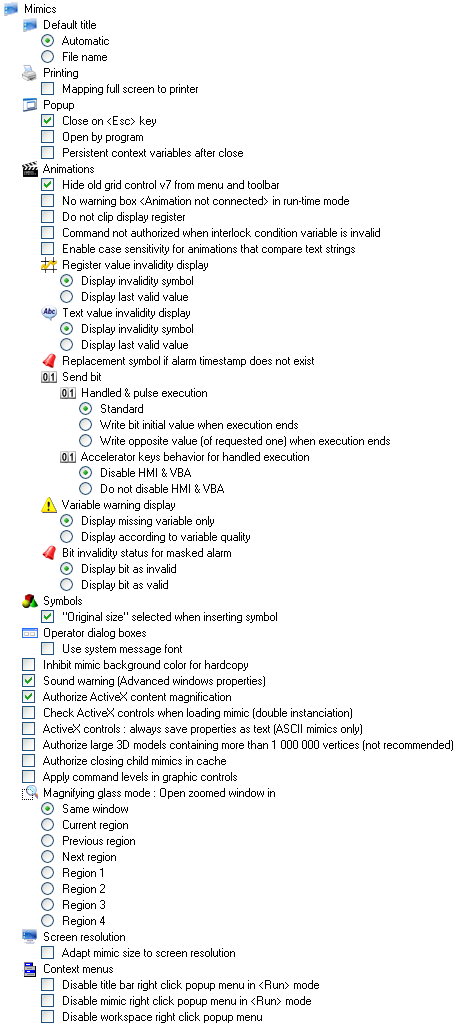

Show picture

• Mimics
• Default title
• Automatic - The name that appears in the mimic title bar is of the form Mimic<n> where <n> is a number that automatically increments each time a new mimic is created.
• File name - The name that appears in the mimic title bar is the name of the file in which the mimic is saved.
• Printing
  • Mapping full screen to printer - Scale the output to the printer so that the entire screen (the actual screen, not the Workspace) fits the printer paper. This affects the following printing methods:
    Menu command File.Print, Log Report printing, SCADA Basic instruction WINDOW mode PRINT.
    Warning - Using this option can result in different X and Y scaling thereby distorting the printed output.
• Popup
• Close on <esc> key - Allow context windows to be closed by the escape key.
• Open by program. Enable mimic popup behavior when a mimic is opened as a child of another mimic using the SCADA Basic instruction WINDOW. If this property is not selected, even if the mimic is configured as a popup, it will not exhibit popup behavior.
• Close container mimic on link close animation using "*" - If enabled, a click on a link close animation using the wildcard "*" in a popup mimic also closes the parent mimic.
• Persistent context variables after close - If enabled, the name of the context variable is persisted after closing the context mimic and is only reset when opening another context mimic. Otherwise, the name of the context variable is no longer available (to scripts or for pasting the variable in a trend legend for example) as soon as the context mimic is closed.
• Animation
• Hide old Grid control V7 from Menu and Toolbar -Hides the version 7 Grid Display command and tool.
• No warning box <animation not connected> in run-time mode - The normal warning dialog that appears at run-time when an animation refers to a non-existent variable is not displayed.
• Do not clip display register - If a value is (numerically) too large to display in a formatted Display Register animation, display the replacement character instead. The default replacement character is the # but may be changed if required.
• Command not authorized when Interlock Condition variable is invalid - when an interlock condition applies and its variable is in the Invalid state, disable the animation.
• Enable case sensitivity for animations that compare text strings - Enable case sensitivity in string comparisons for the following animations. Color - Text value, Image - Text value, Symbol - text value and Visibility - Text value.
• Register value invalidity display
• Display invalidity symbol - If the value of a register value is invalid a question mark is displayed.
• Display last valid value - If the value of a register is invalid the last valid value is displayed.
• Text value invalidity display
• Display invalidity symbol - If the value of a text variable is invalid a question mark is displayed.
• Display last valid value - If the value of a text variable is invalid the last valid value is displayed.
• Replacement symbol if alarm timestamp does not exist - When displaying alarms on a single line in an alarm viewer, the character specified here is used to replace timestamps related to future transitions of the alarm.
• Send Bit
• Handled & Pulse Execution - Behavior of handled or pulse operation of the Send Bit animation. See also tables below.
• Standard - If the bit value at the start of the mouse down event is the same as that requested by the animation; no action will take place when the mouse up event is received.
• Write Bit Initial Value When Execution Ends - The bit value requested by the animation is always written on the mouse up event, even if the bit value at the time of the mouse down event was already the same as that requested by the animation.
• Write Opposite Value (of requested one) when Execution Ends - The opposite bit value requested by the animation is always written on the mouse up event, even if the bit value at the time of the mouse down event was already the same as that requested by the animation.
• Accelerator Keys Behavior for Handled Execution
• Disable HMI & VBA - VBA and HMI events are disabled whilst an animation using the Handled option is executed using a keyboard accelerator key.
• Do Not Disable HMI & VBA - VBA and HMI events are not disabled whilst an animation using the Handled option is executed using a keyboard accelerator key.
• Variable Warning Display
• Display Missing Variable Only.
• Display According to Variable Quality.
• Bit Invalidity Status for Masked Alarm
• Display Bit as Invalid.
• Display Bit as Valid.
• Direct send for register and text
• Send value only when pressing "Return" key - The entered value will only be sent if the "Return" key is pressed.
• Send value when pressing "Return" key or when control loses focus - The entered value will be sent if the "Return" key is pressed or if the window prompting an entry loses focus and another window is selected.
• Symbols
  • "Original size" selected when inserting symbol - If activated, the size of the newly inserted symbol is set to its original size.
• Operator Dialog Boxes
• Use system message font - Use the Windows’ system font for text in any dialogs displayed at run time.
• Tab mimics
  • Close container mimic when closing a tab using link animation or scripting - If enabled, closing a mimic in a tab also closes the parent mimic that contains the tab strip.
• Inhibit mimic background color for hardcopy - If set, the background color of a mimic is considered transparent for hardcopy printing.
• Sound Warning (Advanced Windows Properties) – Enables the generation of a sound using the PC’s loudspeaker when the Beep option in a window’s properties is selected. The frequency and duration of the sound may be entered in the parameters area.
• Authorize ActiveX content magnification - Allow the content of an ActiveX control to zoom if the mimic is zoomed. Ticked by default for new projects. This option is included for compatibility as zooming was not allowed on ActiveX controls in version 9.0 and earlier.
• Check ActiveX controls when loading mimic (double instantiation) - If enabled, ActiveX are loading in a 2-pass process so that some interop issues can be bypassed.
• ActiveX controls: Always save properties as text (ASCII mimics only) - If enabled, the property Save property as text of an ActiveX is ignored and its properties are always saved as text if the mimic is saved in ASCII.
• Authorize large 3D models containing more than 1 000 000 vertices (not recommended) - If set, large DirectX 3D models are loaded. If not, such models are not loaded and an error is raised.
• Authorize closing child mimics in cache - If set, a child mimic in cache will be closed if closing the parent mimic.
• Apply command levels in graphic controls - Defines the default behavior for enforcement of variable command level permissions in graphic controls that can be operated via variables values (including the Form controls). If not set, variables command level enforcement is not enabled. The default behavior can be overridden as part of the configuration of each graphic control using properties in the Operations tab.
• Magnifying Glass mode : Open Zoomed Mimic in
• Same Window - The zoomed mimic is displayed in the original window.
• Current Region - The zoomed mimic is displayed in a new window opened in the same region.
• Previous Region - The zoomed mimic is displayed in a new window opened in the previous region.
• Next Region - The zoomed mimic is displayed in a new window opened in the previous region.
• Region 1 - The zoomed mimic is displayed in a new window opened in region 1.
• Region 2 - The zoomed mimic is displayed in a new window opened in region 2.
• Region 3 - The zoomed mimic is displayed in a new window opened in region 3.
• Region 4 - The zoomed mimic is displayed in a new window opened in region 4.
• Screen resolution
• Adapt Mimic Size to Screen Resolution - See the topic on The Window Properties Dialog.
• Context menus - Disable the right click context menus that appear, by default, at run-time when right clicking on a mimic or mimic title bar.
  • Disable title bar right click popup menu in <Run> mode
  • Disable mimic right click popup menu in <Run> mode
  • Disable workspace right click popup menu

Detailed explanation of handled command

Initial value	Command	Standard	Write bit initial value	Write opposite value
0	Command to 1 (Press and release)	Send 1 to var	Send 1 to var	Send 1 to var
		Send 0 to var	Send 0 to var	Send 0 to var
	Command to 0 (Press and release)	No send	Send 0 to var*	Send 0 to var*
		No send	Send 0 to var*	Send 1 to var
1	Command to 1 (Press and release)	No send	Send 1 to var*	Send 1 to var*
		No send	Send 1 to var*	Send 0 to var
	Command to 1 (Press and release)	Send 0 to var	Send 0 to var	Send 0 to var
		Send 1 to var	Send 1 to var	Send 1 to var

*Write command not executed as previous value is the same.

Detailed explanation of pulse command

Initial value	Command	Standard	Write bit initial value	Write opposite value
0	Command to 1	Send 1 to var	Send 1 to var	Send 1 to var
		Delay	Delay	Delay
		Send 0 to var	Send 0 to var	Send 0 to var
	Command to 0	Send 0 to var*	Send 0 to var*	Send 0 to var*
		Delay	Delay	Delay
		Send 1 to var	Send 0 to var*	Send 1 to var
1	Command to 1	Send 1 to var*	Send 1 to var*	Send 1 to var*
		Delay	Delay	Delay
		Send 0 to var	Send 1 to var*	Send 0 to var
	Command to 0	Send 0 to var	Send 0 to var	Send 0 to var
		Delay	Delay	Delay
		Send 1 to var	Send 1 to var	Send 1 to var

*Write command not executed as previous value is the same.
