SELECTOR

How the Lines and Columns are numbered in a grid control

The data lines and columns are numbered starting at 0.

The header lines and columns (Fixed Row / Col in the Grid Properties dialog) are numbered starting at -1. Show picture

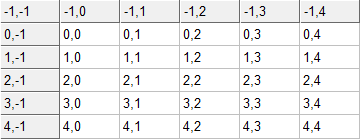

AIGrid with cell numbers.

Modes

Mode	Mnemonic	Syntax
1	GETNBLINE	1
2	GETNBCOL	1
3	GETCELL	2
4	GETLINE	3
5	GETCOL	4
6	GETARRAY	5
7	PUTCELL	6
8	PUTLINE	3
9	PUTCOL	4
10	PUTARRAY	5
11	SCROLL	7
12	GETLISTART	1
13	GETNBLINEMAX	1
14	VARIABLE	9
15	VARMODE	10
16	SELECTLINE	1
17	SELECTCOL	1
18	SELECTMODE	7
19	SFIRSTCELL	1
20	SNEXTCELL	1
21	ALLSELOFF	1
22	CLICKCELL	16
23	GETSEL	16
24	SELPROG	11
25	INPUTPROG	11
26	CLEAR	1
27	SETNBLINE	8
28	GETLASTCELL	1
30	SORT	12
31	GETCELLBACKCOLOR	13
32	GETCELLTEXTCOLOR	13
33	PUTBACKCOLOR	14
34	PUTTEXTCOLOR	14
35	GETVARNAME	15
36	HISTORICAL	See the topic SELECTOR mode HISTORICAL
37	SETSELECTEDQUERYINDEX	17
38	GETSELECTEDQUERYINDEX	1
39	EXECQUERY	1
40	GETSELECTEDQUERYSYNTAX	19
41	SETCYCLICEXECPERIOD	18

The following instructions are designed for and can only be used with the Sql grid control:

SETSELECTEDQUERYINDEX
GETSELECTEDQUERYINDEX
EXECQUERY
GETSELECTEDQUERYSYNTAX
SETCYCLICEXECPERIOD

All Syntaxes

Argument	Meaning
Window	The name of the window that contains the grid control to be used. Type STR.
Branch	The branch of the window (if any). Using a "*" means the current branch of the program. Type STR.
Identity	The identity of the grid control animation within the specified window. Type STR.

Syntax 1

IntVal = SELECTOR(Mode, Window, Branch, Identity);

Return type: INTEGER.

Execution

Mode	Mnemonic	Action
1	GETNBLINE	Returns the number of lines that may be displayed at any one time (dependent on the size of the support drawing element).
2	GETNBCOL	Returns the number of columns.
12	GETLISTART	Returns the index of the first visible line at the top of the grid control.
13	GETNBLINEMAX	Returns the total number of lines present in memory.
16	SELECTLINE	Returns the line index of the cell currently selected. Returns -1 if no cell selected.
17	SELECTCOL	Returns the column index of the cell currently selected. Returns -1 if no cell selected.
19	SFIRSTCELL	For a multiple selection, find the first selected cell searching from the beginning of the table. Use modes 16 (SELECTLINE) and 17 (SELECTCOL) to obtain the position of the cell found. Returns 1 if a cell has been found else 0.
20	SNEXTCELL	For a multiple selection, find the next selected cell starting from the last cell found with the same function or with mode 19 (SFIRSTCELL). Use modes 16 (SELECTLINE) and 17 (SELECTCOL) to obtain the position of the cell found. The search is made from left to right then top to bottom. Returns 1 if a cell as been found else 0.
21	ALLSELOFF	Deselect all the selected cells of a table.
26	CLEAR	Reset the table.
28	GETLASTCELL	Returns the number of lines used.
38	GETSELECTEDQUERYINDEX	Returns the index of the selected Sql query. Returns -1 if no query selected.
39	EXECQUERY	Executes the selected Sql query. Returns 1 if OK, else 0.
		All modes return 0 if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 2

StrVal = SELECTOR(Mode, Window, Branch, Identity, Line, Column);

Return type: STR.

Argument	Meaning
Line	The index of a line. Type INTEGER.
Column	The index of a column. Type INTEGER.

Execution

Mode

Mnemonic

Action

GETCELL

Return the contents of the cell pointed to by the line and column index.

Line and column indices both start at 0.

Return: An empty string if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 3

LongVal = SELECTOR(Mode, Window, Branch, Identity, Line, Hbuf, Csepa);

Return type: LONG.

Argument	Meaning
Hbuf	The location (handle) of a memory buffer as returned by ALLOC_BUFFER. Type LONG.
Csepa	A single character used as a delimiter for the text in each column. Type STR.

Execution

Mode	Mnemonic	Action
4	GETLINE	Get the contents of the line Line and store it in the memory buffer Hbuf.
8	PUTLINE	Write the contents of the line Line using the contents of the memory buffer Hbuf.
		Return: 0 if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 4

LongVal = SELECTOR(Mode, Window, Branch, Identity, Col, Hbuf, Lsepa);

Return type: LONG.

Argument	Meaning
Hbuf	The location (handle) of a memory buffer as returned by ALLOC_BUFFER. Type LONG.
Lsepa	A single character used as a delimiter at the end of each line. Type STR.

Execution

Mode	Mnemonic	Action
5	GETCOL	Get the contents of the column Col and store it in the memory buffer Hbuf.
9	PUTCOL	Write the contents of the column Col using the contents of the memory buffer Hbuf.
		Return: 0 if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 5

LongVal = SELECTOR(Mode, Window, Branch, Identity, Hbuf, StartLine, StartCol, EndLine, EndCol, CLsepa);

Return type: LONG.

Argument	Meaning
Hbuf	The location (handle) of a memory buffer as returned by ALLOC_BUFFER. Type LONG.
StartLine	The index of a line. Type INTEGER.
StartCol	The index of a column. Type INTEGER.
EndLine	The index of a line. Type INTEGER.
EndCol	The index of a column. Type INTEGER.
CLsepa	Two characters used as delimiters for the text in each column and line. Type STR.

Execution

Mode	Mnemonic	Action
6	GETARRAY	Get the contents of the cell range specified by StartLine, StartCol and EndLine, EndCol and store it in the memory buffer Hbuf.
10	PUTARRAY	Write the contents of the cell range specified by StartLine, StartCol and EndLine, EndCol using the contents of the memory buffer Hbuf.
		Return: 0 if unsuccessful (incorrect parameter or executed in WebVue context).

In both modes, the two characters supplied by CLsepa are used as column and line delimiters.

Syntax 6

IntVal = SELECTOR(Mode, Window, Branch, Identity, Line, Column, Chain);

Return type: INTEGER.

Argument	Meaning
Line	The index of a line. Type INTEGER.
Column	The index of a column. Type INTEGER.
Chain	A character string. Type STR.

Execution

Mode

Mnemonic

Action

PUTCELL

Write the supplied Chain into the cell specified by Line and Column.

Return: 0 if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 7

IntVal = SELECTOR(Mode, Window, Branch, Identity, OpMode [, LineNb]);

Return type: INTEGER.

Argument	Meaning
OpMode	A number indicating (according to the Mode selected) the operational mode for the grid control.
LineNb	A number indicating a specific line. Type INTEGER.

Execution

Mode	Mnemonic	Action
11	SCROLL	Scroll the contents of the grid control. The OpMode argument provides the scroll mode: 1 TOBEGIN - Scroll to the start of the grid content. 2 PAGEUP - Scroll up by one page of content. 3 LINEUP - Scroll up by one line of content. 4 LINEDOWN - Scroll down by one line of content. 5 PAGEDOWN - Scroll down by one page of content. 6 TOEND - Scroll to the end of the grid content. 7 TOLINE - Scroll to a specific line in the grid. 8 TOFIRSTCOL - Scroll to the first column of the grid. 9 PAGELEFT - Scroll left by one page of columns. 10 COLLEFT - Scroll left by one column. 11 COLRIGHT - Scroll right by one column. 12 PAGERIGHT - Scroll right by one page of columns. 13 TOLASTCOL - Scroll to the last column of the grid. 14 TOCOL - Scroll to a specific column in the grid.
18	SELECTMODE	Change the response of the cells to user actions. The OpMode argument defines the behavior: 0 OFF - Disables cell selection and interaction. 1 MONO - Allows single-cell selection. 3 MULTI - Allows selection of multiple cells. 5 INPUT - Enables user input within cells.
		Return: 1 if OK, else 0 (incorrect parameter or executed in WebVue context).

Syntax 8

IntVal = SELECTOR(Mode, Window, Branch, Identity, LineNb);

Return type: INTEGER.

Argument	Meaning
LineNb	A number indicating a specific line. Type INTEGER.

Execution

Mode	Mnemonic	Action
27	SETNBLINE	Define the last line that can be made visible by scrolling. If the lines currently visible are greater than the new LineNb value, the table is position to the new value.
		Return: 1 if OK, else 0 (incorrect parameter or executed in WebVue context).

Syntax 9

IntVal = SELECTOR(Mode, Window, Branch, Identity, Filter, VarType);

Return type: INTEGER.

Argument

Meaning

Filter

A filter, applied to the variable name, for the variables that are displayed. Depending on how the grid control is configured, either:

A regular expression - For details, see the topic Regular Expressions.
A SQL expression. See the topic Using a SQL expression to filter variables in the HMI help book.

VarType

An integer defining the type of variable:

1 Bits
2 Alarms
4 Registers
8 Text

Any combination may be used, for example, 3 (1 + 2) would correspond to Bits and Alarms.

Execution

Mode	Mnemonic	Action
14	VARIABLE	Display a list of variables and their real time values in a two column grid control. The variables that are displayed are filtered according to the parameters Filter and VarType.
		Return: 1 if OK, else 0 (incorrect parameter, syntax error in the filter, grid control not in variable tracking mode, or executed in WebVue context).

To use this mode, the variable tracking property of the grid control must first be set.

If a variable has the command attribute set the background color of its value display will correspond to that in the grid control definition for a selected cell. The value of the variable may be changed by clicking on the cell displaying its value.

When using the grid control to display the value of variables in the database, only variables in the visible area of the grid control are subscribed and have their real time values updated.

Syntax 10

IntVal = SELECTOR(Mode, Window, Branch, Identity, VarType);

Return type: INTEGER.

Argument

Meaning

VarType

An INTEGER defining what to display for the variable:

0 Variable name
1 Variable title
2 Variable name and title

Execution

Mode	Mnemonic	Action
15	VARMODE	Display a list of variable names and their properties according to VarType.
		Return: 1 if OK, else 0 (incorrect parameter or executed in WebVue context).

Syntax 11

IntVal = SELECTOR(Mode, Window, Branch, Identity, Program, Branch, Function [Farg]);

Return type: INTEGER.

Argument	Meaning
Program	Program name. Type STR.
Branch	Branch name. Type STR.
Function	Function name. Type STR.
Farg	Optional. String of 2,047 characters maximum, used to pass from 1 to 8 arguments separated by "," (comma) to the function. These arguments can be retrieved in the called function using the verb GETARG.

Execution

Mode	Mnemonic	Action
24	SELPROG	Specify a function that will be executed when a cell of the table is clicked. The table must be in MONO or MULTI mode.
25	INPUTPROG	Specify a function that will be executed when a cell of the table is clicked. A dialog box provides the operator with the option to confirm or cancel. The table must be in INPUT mode.
		Return: 1 if OK, else 0 (incorrect parameter or executed in WebVue context).

Syntax 12

IntVal = SELECTOR(Mode, Window, Branch, Identity, Column, Flag);

Return type: INTEGER.

Argument

Meaning

Column

Column number. Type INTEGER.

Flag

A flag indicating the sort order. Type INTEGER.

0 or greater: ascending

Less than 0: descending.

Execution

Mode

Mnemonic

Action

SORT

The contents of the table are sorted using the contents of the specified column.

The sort order is according to the ASCII code of the characters in each cell.

Return: 1 if OK, else 0 (incorrect parameter or executed in WebVue context).

Syntax 13

Color = SELECTOR(Mode, Window, Branch, Identity, Line, Column);

Return type: LONG.

Argument	Meaning
Line	The index of a line. Type INTEGER.
Column	The index of a column. Type INTEGER.
Color	A color as a byte weighted value to code an RGB value. Red is byte 0, green byte 1 and blue byte 2. For example,, red is 255, green 65280 and yellow (red + green) 65535. Type LONG.

Execution

Mode	Mnemonic	Action
31	GETCELLBACKCOLOR	Return the background color of a cell as a byte weighted value.
32	GETCELLTEXTCOLOR	Return the text color of a cell as a byte weighted value.
		Return: 0 if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 14

IntVal = SELECTOR(Mode, Window, Branch, Identity, StartLine, StartCol, EndLine, EndCol, Color);

Return type: INTEGER.

Argument	Meaning
StartLine	The index of a line. Type INTEGER.
StartCol	The index of a column. Type INTEGER.
EndLine	The index of a line. Type INTEGER.
EndCol	The index of a column. Type INTEGER.
Color	The color as a byte weighted value. Type LONG.

Execution

Mode	Mnemonic	Action
33	PUTBACKCOLOR	Change the background color of a range of cells to the color given by the Color parameter. The range of cells is defined by the StartLine, StartCol, EndLine, EndCol parameters.
34	PUTTEXTCOLOR	Change the text color of a range of cells to the color given by the Color parameter. The range of cells is defined by the StartLine, StartCol, EndLine, EndCol parameters.
		Return: 1 is OK, else 0 (incorrect parameter or executed in WebVue context).

Syntax 15

StrVal = SELECTOR(Mode, Window, Branch, Identity, LineNb);

Return type: STR.

Argument	Meaning
LineNb	The index of a line. Type INTEGER.

Execution

Mode

Mnemonic

Action

GETVARNAME

Returns the name of the variable in the specified line when the grid control is in variable tracking mode.

Return: The variable name or an empty string if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 16

IntVal = SELECTOR(Mode, Window, Branch, Identity, Line, Column);

The return type: INTEGER.

Argument	Meaning
Line	The index of a line. Type INTEGER.
Column	The index of a column. Type INTEGER.

Execution

Mode	Mnemonic	Action
22	CLICKCELL	Simulate a click of the mouse on the cell specified by Line and Column. Returns 1 if OK, else 0.
23	GETSEL	Check whether a cell is selected. Returns 1 if the cell is selected, else 0.
		Return: 0 if unsuccessful (incorrect parameter or executed in WebVue context).

Syntax 17

IntVal = SELECTOR(Mode, Window, Branch, Identity, Index);

Return type: INTEGER.

Execution

Mode

Mnemonic

Action

SETSELECTEDQUERYINDEX

Sets the Sql query at Index as Selected for execution.

Returns 1 if OK, else 0.

Syntax 18

IntVal = SELECTOR(Mode, Window, Branch, Identity, Hours, Minutes, Seconds);

Return type: INTEGER.

Execution

Mode

Mnemonic

Action

SETCYCLICEXECPERIOD

Changes the value of the timer to trigger the selected Sql query cyclically.

Returns 1 if OK, else 0.

Syntax 19

StrVal = SELECTOR(Mode, Window, Branch, Identity);

Return type: STR.

Execution

Mode

Mnemonic

Action

GETSELECTEDQUERYSYNTAX

Returns the syntax of the selected Sql query.

Returns an empty string if unsuccessful (incorrect parameter or executed in WebVue context).

Example

For an example, select the Example link above.

SELECTOR

How the Lines and Columns are numbered in a grid control

Modes

All Syntaxes

Syntax 1

Execution

Syntax 2

Execution

Syntax 3

Execution

Syntax 4

Execution

Syntax 5

Execution

Syntax 6

Execution

Syntax 7

Execution

Syntax 8

Execution

Syntax 9

Execution

Syntax 10

Execution

Syntax 11

Execution

Syntax 12

Execution

Syntax 13

Execution

Syntax 14

Execution

Syntax 15

Execution

Syntax 16

Execution

Syntax 17

Execution

Syntax 18

Execution

Syntax 19

Execution

Example

Send us your feedback
