Links Tab

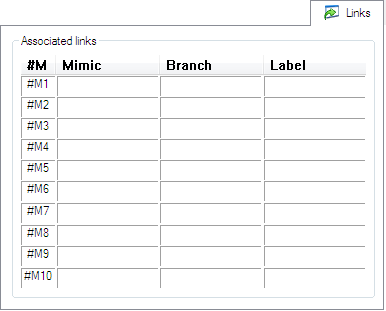

The options available from this tab determine which mimics are opened from Link - Open animations when using the substitution strings #M1 to #M10. Show picture

If you base the Link-open animation on a text drawing element, and you are using one of the substitution strings #M1 to #M10, at runtime the label specified with the window name will be displayed in the text drawing element.

This technique may be used to create a standard menu object containing up to 10 Link-Open animations. The text displayed in the support drawing elements, and the windows opened, will depend on the link properties of the window in which the object is placed.
