If you put a Command animation (such as Send or Link) on a drawing element as you build a symbol, it is useful for the User that you display the title and domain of the associated variable.

You can easily do so by using substitution strings directly in the Comment field, as shown in the example below.

Example

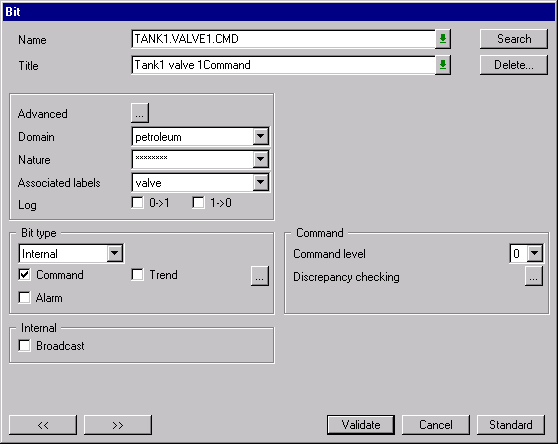

The variable information for building the valve animation is as follows:

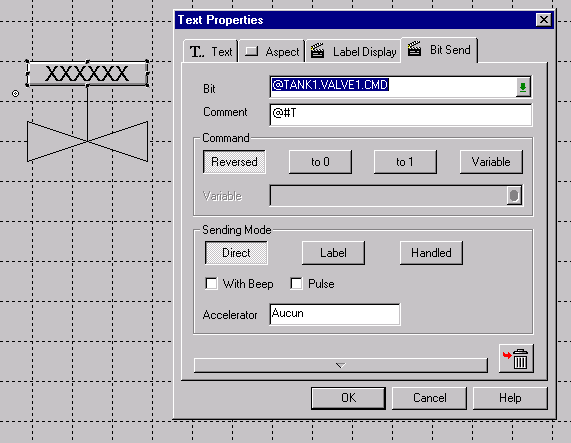

In the example, Variable Title is displayed in the Comment field:

In Run mode when the cursor enters the Command object area, the Comment appears as follows:

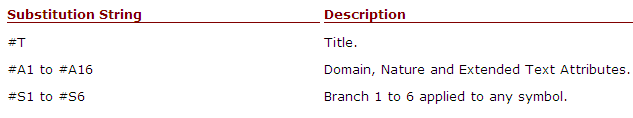

The substitution strings with which you can do this are:
