Overview of the Window Properties Dialog

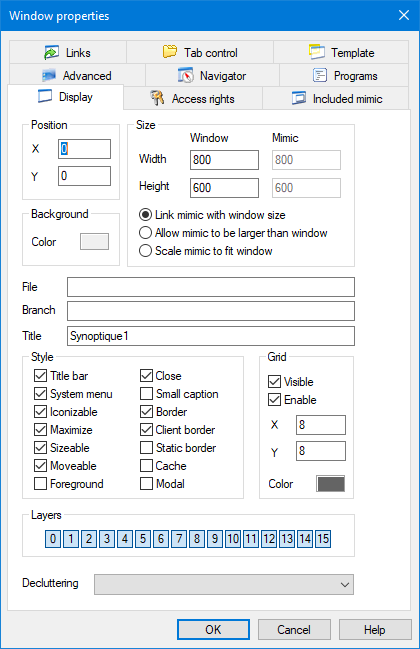

The Window Properties dialog is displayed from the mimic context menu and defines the behavior and operation of a mimic's support window. ClosedShow picture

Configuration properties of a window are, for convenience, grouped together in several tabs.

  • Display - Configuration of the general window appearance and behavior. See the Window style, Window and mimic size, Displaying text in the title bar, Drawing grid and Drawing Layers and De-clutter Templates topics.
  • Access rights - Configuration of user access level, zoom and layer rights. See the Access Rights tab topic.
  • Included mimic - Behavior when opened as a child of another mimic (using the Link - Open animation) or as a context mimic. See the Included mimic tab topic.
  • Advanced - Configuration of the screen resolution for when the target PC has a different screen resolution to that of the development PC. See the Advanced tab topic.
  • Navigator - Configuration of the optional embedded navigator that displays a thumbnail of the mimic. See the Mimic navigator topic.
  • Programs - Selection of SCADA Basic programs which are run when the mimic is opened and / or when it is closed. See the Programs tab topic.
  • Links - Configuration of which mimics are opened from Link - Open animation when using the substitution strings #M1 to #M10. See the Links tab topic.
  • Tab control - Configuration of multiple mimic pages that at run time, are selected by tabs in a similar way to some configuration dialogs. See the Mimic tab control book.
  • Template - Selection and behavior of the mimic template. see the Mimic templates book.
